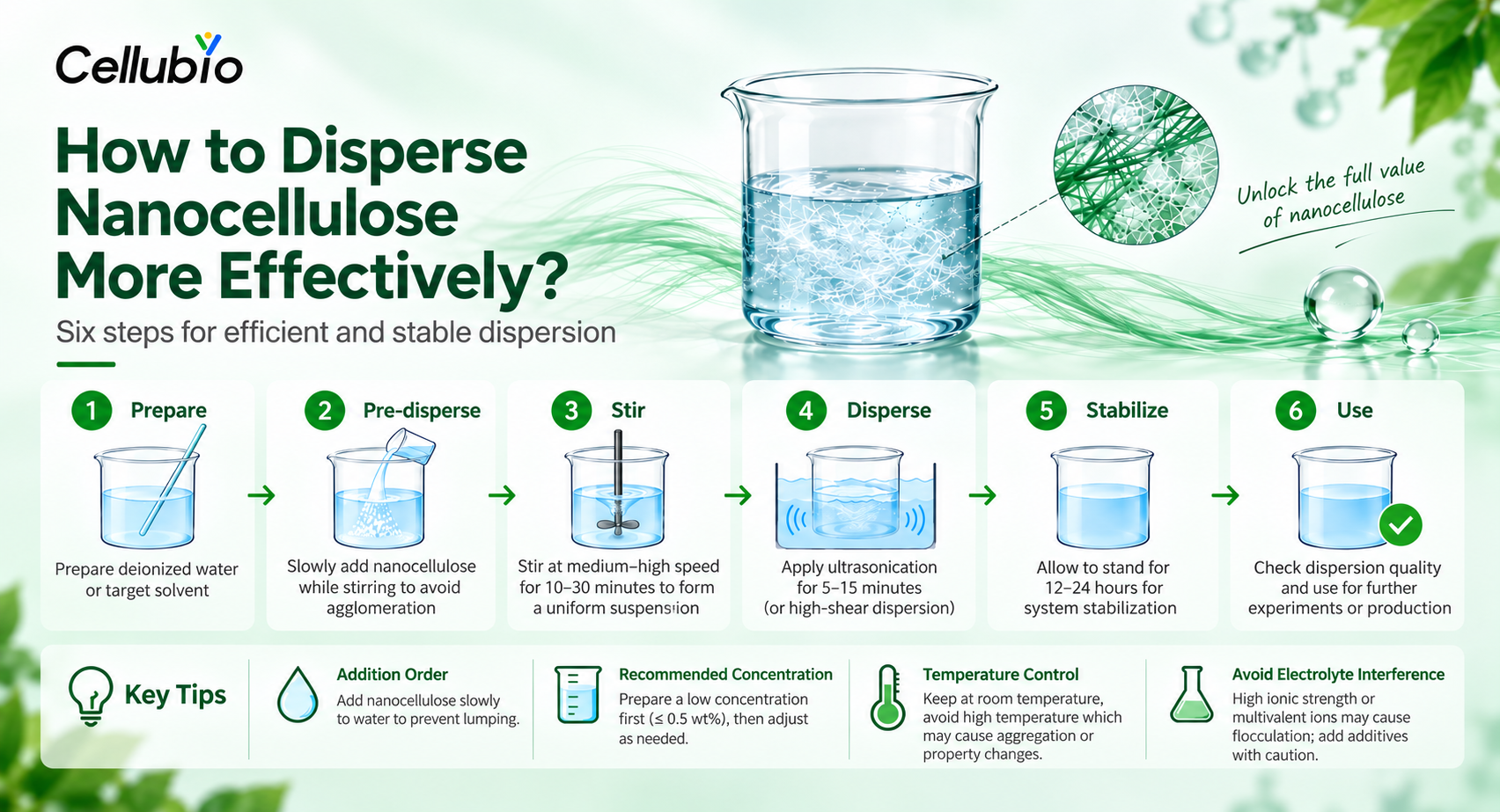

How to Achieve Better Nanocellulose Dispersion? A Practical Guide to CNC and CNF Dispersion Methods
Modified CNC/CNF can generally be readily dispersed in water, but “easy to disperse” does not mean that the material can be added indiscriminately. The most common causes of dispersion failure include adding the powder all at once, introducing salts before the nanocellulose, or attempting to disperse the material directly in a highly viscous system.
1.Recommended Addition Sequence for Powdered Nanocellulose in Aqueous Systems
· Add approximately 70%–80% of the deionized water first and begin moderate-speed stirring.
· Slowly and evenly sprinkle the powder onto the liquid surface to prevent agglomeration and settling.
· Gradually increase the shear intensity after the powder has been fully wetted.
· Use intermittent ultrasonication or high-shear mixing as needed, while controlling the temperature.
· After confirming that no obvious particles remain, adjust the pH, add the remaining water, and introduce salts or other components as required.
2.Dilution and Redispersion of Aqueous Nanocellulose Dispersions
Diluting an aqueous nanocellulose dispersion is straightforward. Simply add the required amount of deionized water to achieve the desired concentration, then mix thoroughly before use. In general, the following methods can be used for redispersion:
· Small quantities: Transfer the sample into a sealed container and shake thoroughly by hand. This is usually sufficient to obtain a uniform dispersion.
· Larger quantities: *Magnetic stirring or mechanical stirring can be used to assist mixing.
· For higher dispersion uniformity: After adding deionized water, sonicate for approximately 3–10 minutes to further improve dispersion uniformity.
In most cases, water-dispersible nanocellulose does not require complicated redispersion procedures. After dilution with water, it can generally be used directly following thorough shaking, stirring, or brief ultrasonication.
3. How to Add Liquid or Gel-Type CNF
High-viscosity CNF is not recommended for direct addition into an already highly viscous resin or adhesive system. A more reliable approach is to first pre-dilute the CNF with a portion of water or a compatible medium, then add it gradually as a thin stream into the main formulation while maintaining sufficient bulk circulation and mixing.
4. Effects of pH and Ionic Strength
| Variable | Possible Effects | Recommendation |
| Low pH | Increased protonation of carboxyl groups, resulting in reduced electrostatic repulsion | Evaluate stability across a range of pH values |
| Increased electrolyte concentration (e.g., NaCl) | Compression of the electrical double layer | Disperse the nanocellulose first, then add salt |
| Multivalent ions such as Ca²⁺/Al³⁺ | Bridging flocculation or gelation may occur | Add gradually at low concentrations |
| Cationic polymers | Rapid complexation or flocculation | Dilute before addition, mix slowly, and control the charge ratio |
5. How to Determine Whether Nanocellulose Is Properly Dispersed
· The absence of visible large particles is only the first step in evaluating dispersion quality.
· For low-concentration CNC dispersions, TEM/AFM or appropriate particle-sizing techniques can be used for further characterization.
· For CNF, evaluate rheological reproducibility, microscopic morphology, and macroscopic uniformity.
· Before and after formulation, monitor stability over 24 hours rather than evaluating the dispersion solely based on its appearance immediately after dispersion.
Experimental Note: The concentrations, processing times, shear conditions, and addition levels described in this article are intended only as starting points for preliminary lab-scale trials. They should not replace specific instrument SOPs, standardized test methods, or validation for individual samples. For applications involving food, medical, or other regulated uses, applicable regulatory and compliance requirements should be independently confirmed.
